Omschrijving
-
Eigenschappen
Eigenschappen
Front axle I will specify this later, 110 x 15 mm axle
Rear axle 148 x 12 mm axle, I will specify this later
Rim materials Carbon
Freehub body Campagnolo Ekar 13 speed, M-body, Shimano Microspline 12 speed, SRAM XD/XDR, I will specify this later
Disc brake rotor front 140 mm disc, 160 mm disc, 180 mm disc, I will specify this later
Disc brake rotor rear 140mm disc, 160mm disc, 180 mm disc, I will specify this later
ANT+ Yes
Bluetooth Yes
Ideal for MTB XC riding
Tubeless ready Yes*
Tubular version No
Wheel size 29″(622)
Tyre types Clincher – Tubeless ready
Freehub system 6 – pawl freehub system, for fast engagement
Brake type Disc brake only
Weight 1990 g (boost)
Rim type Carbon, TLR
Rim height 28 mm
Rim inner width 25 mm, 30 mm, I will specify this later
Spoke offset 2.5 mm
Hub type Boost (110 mm front, 148 mm rear)
Max. system weight 110 kg (rider + bike)
Number of spokes 28
Spoke type DT Swiss Competition Race (1.6 mm)
Spoke nipple type DT Swiss Pro Lock 2.0 mm (aluminum)
Tyre used for specs 29×2.25" tyre (57-622)
Inflation on the fly While riding
Deflation on the fly During standstill, While riding
Average inflation rate 200-250 mbar/min at 25 km/h
Average deflation rate >100 mbar/s
Inflation rate related to riding speed? Yes
Deflation rate related to riding speed? No
Average power consumption during inflation 2 – 4.5 W at 25 km/h, between 1 and 6 bar (per wheel)
Average power consumption during deflation 0 W
Tyre pressure operating range 0.5 – 6.0 bar
Safety valve (color) black (3.5 bar)
-
-
-
-
Specifications

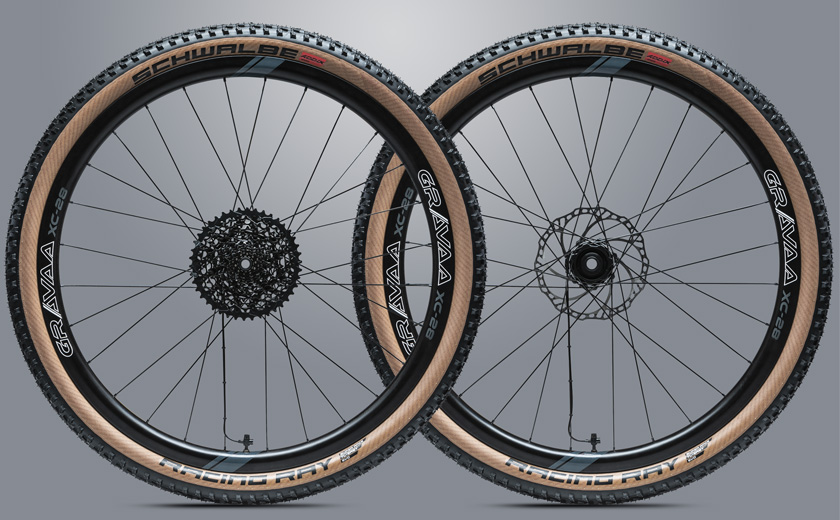

GRAVAA XC-28 DOMINATE THE MTB TRAILS
GRAVAA GX-30 UNLEASH YOUR GRAVEL POTENTIAL
Ideal for MTB XC riding Bike touring, Gravel riding Wheel size 29″(622) 29″(622) Brake type Disc brake only Disc brake only Weight 1990 g (boost) 1970 g (non-boost) Rim type Carbon, TLR Carbon, TLR Rim materials Carbon Carbon Rim height 28 mm 30 mm Rim inner width 25 mm, 30 mm, I will specify this later 25 mm Tyre types Clincher – Tubeless ready Clincher – Tubeless ready Tubeless ready Yes* Yes* Tubular version Hub type Boost (110 mm front, 148 mm rear) Boost (110 mm front, 148 mm rear), Non-boost (100 mm front, 142 mm rear) Max. system weight 110 kg (rider + bike) 110 kg (rider + bike) ANT+ Bluetooth Disc brake rotor front 140 mm disc, 160 mm disc, 180 mm disc, I will specify this later 140 mm disc, 160 mm disc, 180 mm disc, I will specify this later Disc brake rotor rear 140mm disc, 160mm disc, 180 mm disc, I will specify this later 140mm disc, 160mm disc, 180 mm disc, I will specify this later Number of spokes 28 28 Spoke offset 2.5 mm 2.5 mm Spoke type DT Swiss Competition Race (1.6 mm) DT Swiss Competition Race (1.6 mm) Spoke nipple type DT Swiss Pro Lock 2.0 mm (aluminum) DT Swiss Pro Lock 2.0 mm (aluminum) Freehub system 6 – pawl freehub system, for fast engagement 6 – pawl freehub system, for fast engagement Freehub body Campagnolo Ekar 13 speed, M-body, Shimano Microspline 12 speed, SRAM XD/XDR, I will specify this later Campagnolo Ekar 13 speed, M-body, Shimano Microspline 12 speed, SRAM XD/XDR, I will specify this later GRAVAA XC-28 DOMINATE THE MTB TRAILS GRAVAA GX-30 UNLEASH YOUR GRAVEL POTENTIAL Tyre used for specs 29x2.25" tyre (57-622) 29x1.50" tyre (40-622) Inflation on the fly While riding While riding Deflation on the fly During standstill, While riding During standstill, While riding Tyre pressure operating range 0.5 - 6.0 bar 0.5 - 6.0 bar Average inflation rate 200-250 mbar/min at 25 km/h 400-450 mbar/min at 25 km/h Average deflation rate >100 mbar/s >200 mbar/s Inflation rate related to riding speed? Deflation rate related to riding speed? Average power consumption during inflation 2 - 4.5 W at 25 km/h, between 1 and 6 bar (per wheel) 2 - 4.5 W at 25 km/h, between 1 and 6 bar (per wheel) Average power consumption during deflation 0 W 0 W
Gravaa enables you to control tyre pressure on the fly
After four years of developing, prototyping and testing we are about to hit the markets with our revolutionary wheelset. Want to be the first to own this wheelset? Check out our Kickstarter campaign.
