Eigenschappen
ANT+ Yes
Bluetooth Yes
Freehub system DT Swiss Ratchet System (36 teeth)
Front axle 100 x 12 mm axle, 100 x 15 mm axle, 110 x 12 mm axle, 110 x 15mm axle
Ideal for Bike touring, Gravel riding
Rear axle 142 x 12mm axle, 148 x 12 mm axle, I will specify this later
Tubeless ready Yes*
Tubular version No
Tyre types Clincher – Tubeless ready
Wheel size 29"(622)
Rim materials Carbon
Average power consumption during inflation 2 – 4.5 W at 25 km/h, between 1 and 6 bar (per wheel)
Average inflation rate 400-450 mbar/min at 25 km/h
Tyre used for specs 29×1.50" tyre (40-622)
Inflation on the fly While riding
Deflation on the fly During standstill, While riding
Average deflation rate >200 mbar/s
Inflation rate related to riding speed? Yes
Deflation rate related to riding speed? No
Average power consumption during deflation 0 W
Weight 1970 g (non-boost)
Rim type Carbon, TLR
Rim height 30 mm
Rim inner width 25 mm
Brake type Disc brake only
Spoke offset 2.5 mm
Freehub body Campagnolo N3W, Shimano Microspline, SRAM XD/XDR
Disc brake rotor front 140 mm disc, 160 mm disc, 180 mm disc
Disc brake rotor rear 140mm disc, 160mm disc, 180 mm disc
Hub type Non-boost (100 mm front, 142 mm rear)
Max. system weight 110 kg (rider + bike)
Number of spokes 28
Spoke nipple type DT Swiss Pro Lock 2.0 mm (aluminum)
Spoke type DT Swiss Competition Race (1.6 mm)
Tyre pressure operating range 0.5 – 6.0 bar
Safety valve (color) red (5.5 bar)

The revolution is here
A gravel bike leads you to places on and off the paved roads. Because the surface of the trail changes throughout the ride it’s always a compromise (or gamble) which tyre pressure you need for the front and rear tyre when you go out for your gravel ride. In the end you often settle for the middle ground regarding tyre pressure. After years of research and engineering we have developed high-end wheelsets which enable you to manage your tyre pressure during your ride.
The lightweight wheels compose of carbon rims and advanced hubs, in which a miniature high-pressure pump is stored. This pump is driven by the rotation of your wheels: by you. Via an integrated clutch unit and electro-pneumatic wireless control system the pump gets only active on demand. The wheels are fully compatible with standard bikes with disc brakes. You manage your tyre pressure wireless from your handlebars. Meanwhile, all relevant information can be displayed on your bike computer or smartphone.
-
Specifications

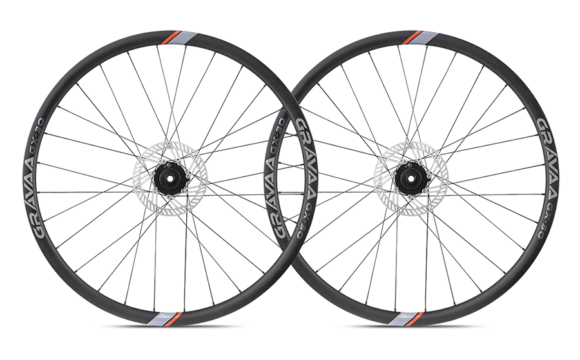

GRAVAA GX-30 UNLEASH YOUR GRAVEL POTENTIAL GRAVAA XC-28 DOMINATE THE MTB TRAILS Ideal for Bike touring, Gravel riding MTB XC riding Wheel size 29"(622) 29"(622) Brake type Disc brake only Disc brake only Weight 1970 g (non-boost) 1990 g (boost) Rim type Carbon, TLR Carbon, TLR Rim materials Carbon Carbon Rim height 30 mm 28 mm Rim inner width 25 mm 30 mm Tyre types Clincher - Tubeless ready Clincher - Tubeless ready Tubeless ready Yes* Yes* Tubular version Hub type Non-boost (100 mm front, 142 mm rear) Boost (110 mm front, 148 mm rear) Max. system weight 110 kg (rider + bike) 110 kg (rider + bike) ANT+ Bluetooth Disc brake rotor front 140 mm disc, 160 mm disc, 180 mm disc 140 mm disc, 160 mm disc, 180 mm disc Disc brake rotor rear 140mm disc, 160mm disc, 180 mm disc 140mm disc, 160mm disc, 180 mm disc Number of spokes 28 28 Spoke offset 2.5 mm 2.5 mm Spoke type DT Swiss Competition Race (1.6 mm) DT Swiss Competition Race (1.6 mm) Spoke nipple type DT Swiss Pro Lock 2.0 mm (aluminum) DT Swiss Pro Lock 2.0 mm (aluminum) Freehub system DT Swiss Ratchet System (36 teeth) DT Swiss Ratchet System (36 teeth) Freehub body Campagnolo N3W, Shimano Microspline, SRAM XD/XDR Campagnolo N3W, Shimano Microspline, SRAM XD/XDR GRAVAA GX-30 UNLEASH YOUR GRAVEL POTENTIAL GRAVAA XC-28 DOMINATE THE MTB TRAILS Tyre used for specs 29x1.50" tyre (40-622) 29x2.25" tyre (57-622) Inflation on the fly While riding While riding Deflation on the fly During standstill, While riding During standstill, While riding Tyre pressure operating range 0.5 - 6.0 bar 0.5 - 6.0 bar Average inflation rate 400-450 mbar/min at 25 km/h 200-250 mbar/min at 25 km/h Average deflation rate >200 mbar/s >100 mbar/s Inflation rate related to riding speed? Deflation rate related to riding speed? Average power consumption during inflation 2 - 4.5 W at 25 km/h, between 1 and 6 bar (per wheel) 2 - 4.5 W at 25 km/h, between 1 and 6 bar (per wheel) Average power consumption during deflation 0 W 0 W

Gravaa enables you to control tyre pressure on the fly
After years of developing, prototyping and testing we are about to hit the markets with our revolutionary carbon wheelsets. Want to know more? Read more about our technology here.
Get 20% off now and pay for this wheelset in 2 installments:
- Immediately:10% of sales price
- Upon delivery: 90% of sales price
Use the pre-order button and configure your desired wheelset.
